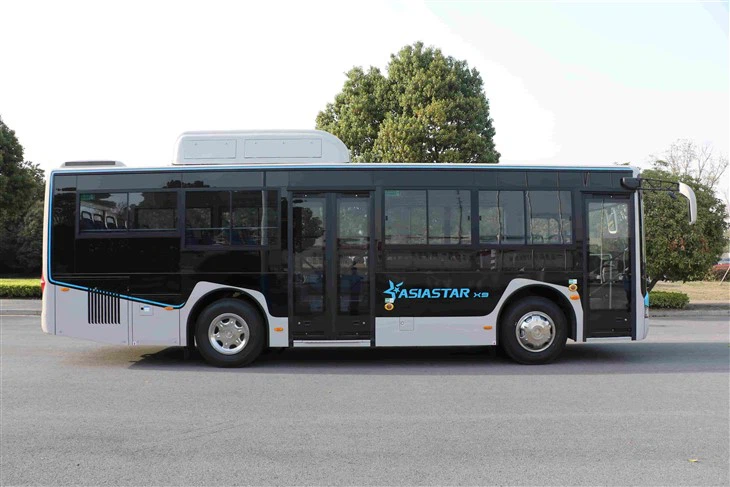

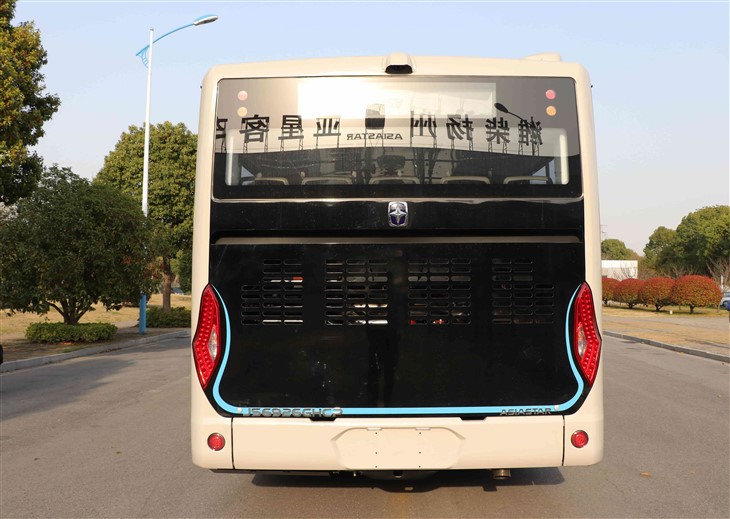

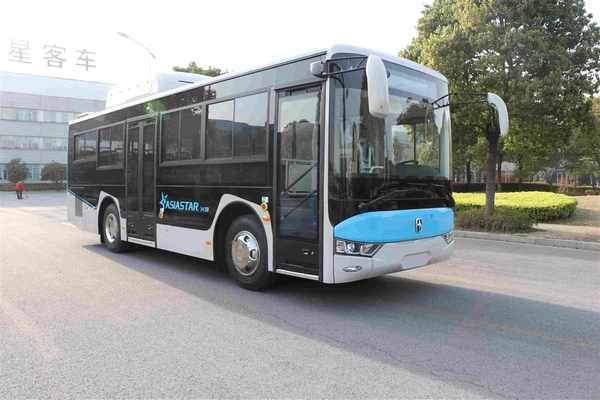

JS6860GHN NG City Bus

Model

JS6860GHN

Dimensions(mm)

8595×2500×3495

Number of seats/Capacity

up to 28+1

Wheelbase(mm)

4100

Approach/departure angle

8/7°

Engine

Weichai WP5NG200E51 CNG Euro 5 emission standard

NG air cylinder or oil tank NG

5×120L (5×80L) steel cylinder, roof mounted

Gearbox

Five speed manual Gearbox, diaphragm spring clutch

Axles

4.2T front axle, 9T rear axle

Suspension system

Spring suspension with front stabilizer bar

Tires

9R22.5 tubeless radial tire (spare tire is optional)

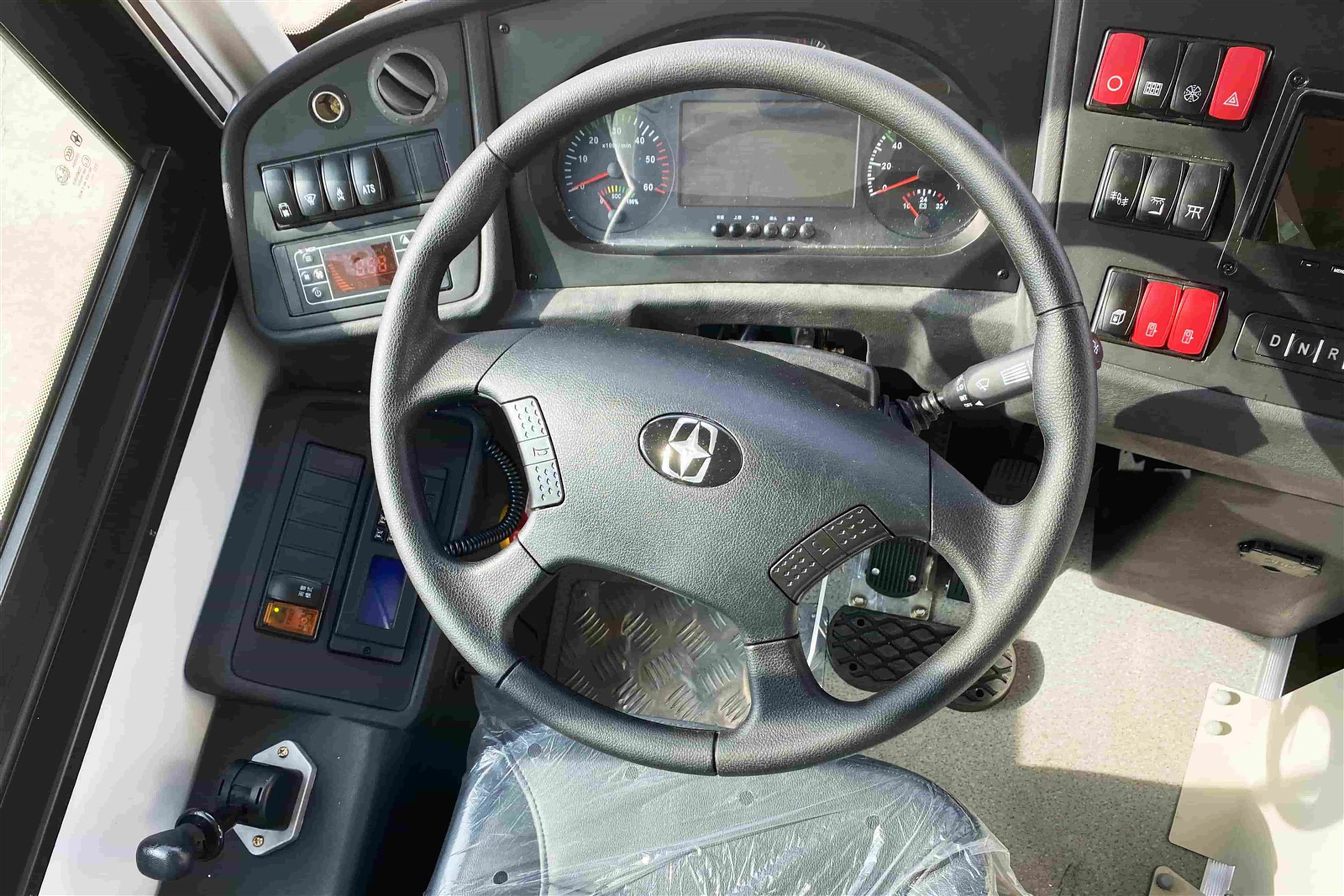

Steering system

Integral power steering

Braking system

Front and rear drum brake (disc is optional), double-circuit pneumatic brake, energy storage spring parking brake
ABS system, ECAS is optional

Body structure

Half-monocoque structure,high-strength rectangular tube frame+steel stamping parts skin, whole bodywork
cathodic electrophoresis treated

Interior

Double long strip LED ceiling lights ,aluminum handrails, guardrails, emergency exit with ventilator

Seats

Passenger seats: Company standard seat (with soft seat cushion )

Driver seat: Luxury high back adjustable seat with three-point seat belt

Air conditioning&heater

Non-independent air conditioning (22,000 kcal, Bitzer compressor), independent water heater with 4 radiator

Doors and windows

Front door: Pneumatic inward-swinging passenger door (single door) aluminum alloy door, add front door open/close button,

Middle door: inward-swinging passenger door (double door)

Signal manual sunshades at front windshield, Cloth curtain(Optional)

Destination sign

Front, rear and side electronic destination signs (LED)

Rear view system

Color reverse monitor

Floor

Two Steps

Others

MP3/19 inch TV, 4 cabin cameras with 500G hard disc storage, manual ramp for wheelchair, enclosed driver cab, automatic fire extinguisher in battery compartment.
